| Machineno | 2070-E23087 |

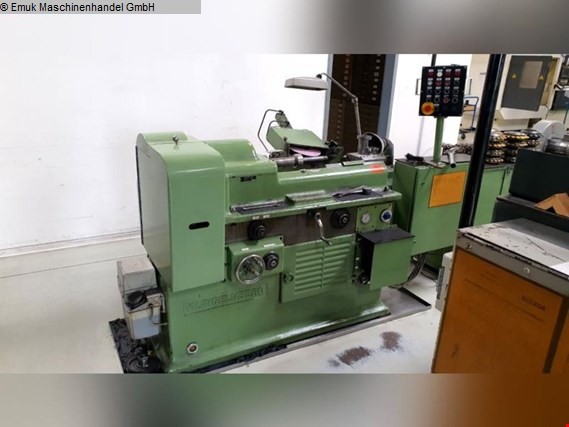

| Machine type | Hob Sharpening Machine |
| Make | KLINGELNBERG |
| Type | GW 30 |
| Build year | |
| Control | conventional |
| Storage location | Malsch stock |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| grinding diameter | 300 mm |
| grinding length | 400 mm |
| max. module | 22 |
| min. module | 0,5 |
| grinding wheel diam. min/max. | 160 / 300 |
| turning speeds | 1500 U/min |
| cross travel | 120 mm |
| min/max. spiral pitch | 5" - unendlich ° |
| fixture slide travel | 500 mm |
| total power requirement | 5 kW |
| weight of the machine ca. | 2,1 t |
| dimensions of the machine ca. | 3,0 x 1,1 x 1,6 m |
|

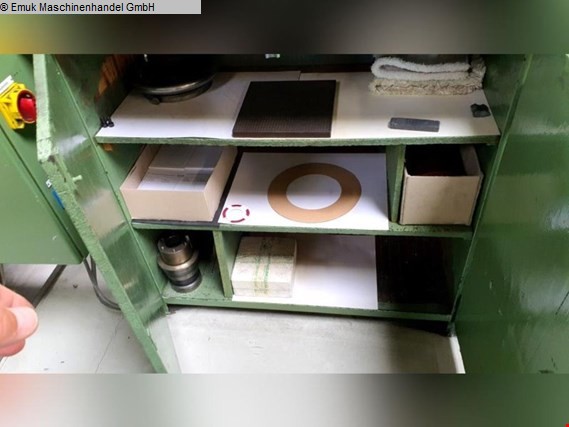

Sharpening machine for cylindrical, straight and spiral fluted tools with left or right helix; especially for spur / worm gear / profile hobs. Chest and bevel grinding possible. Equipment: Change gears, indexing disks, arbors, flanges, grinding disks, ... |
