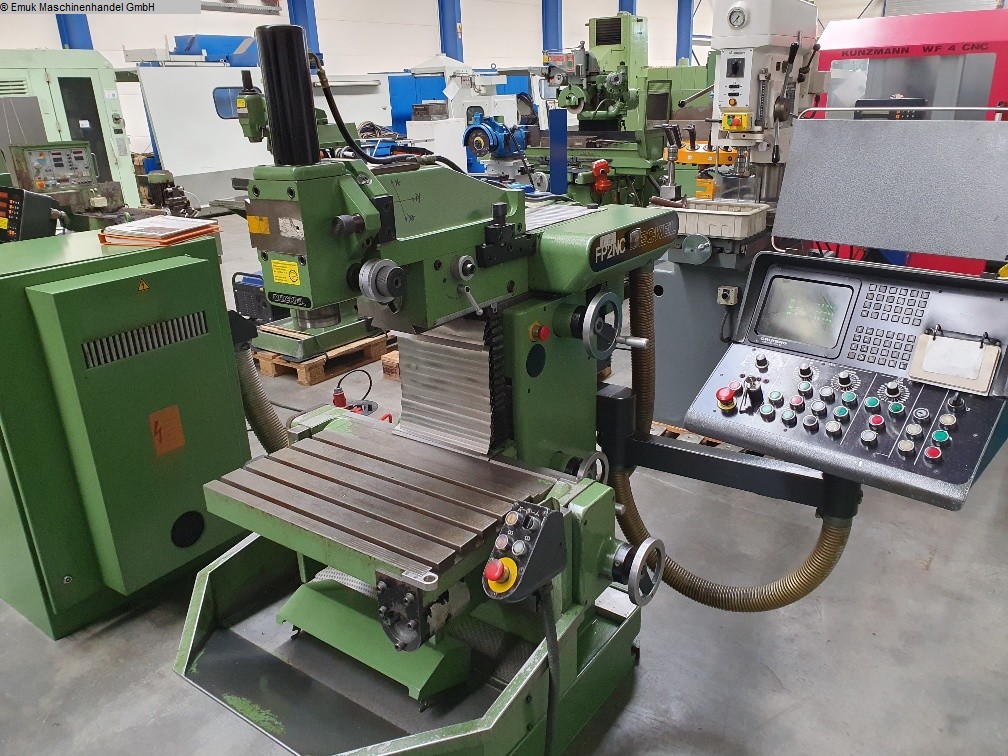

DECKEL FP 2 NC / DIALOG 11

Datasheet

Videos



print datasheet

Machineno 2070-E22072
Machine type Tool Room Milling Machine - Universal
Make DECKEL
Type FP 2 NC / DIALOG 11
Build year 1983
Control NC
Storage location Malsch stock
Origin Deutschland
Delivery time immediately
Freight basis immediately
Price on request

Technical details

x-travel 300 mm
y-travel 300 mm
z-travel 400 mm
CNC-control DIALOG 11
spindle taper ISO 40
spindle turning speed range 31 - 5.000 U/min
table-size 620 x 390 mm
table load 250 kg
feeds -stepless- 2 - 6.000 mm/min
power capacity 5,5 kW
quill stroke 80 mm
voltage 380 V

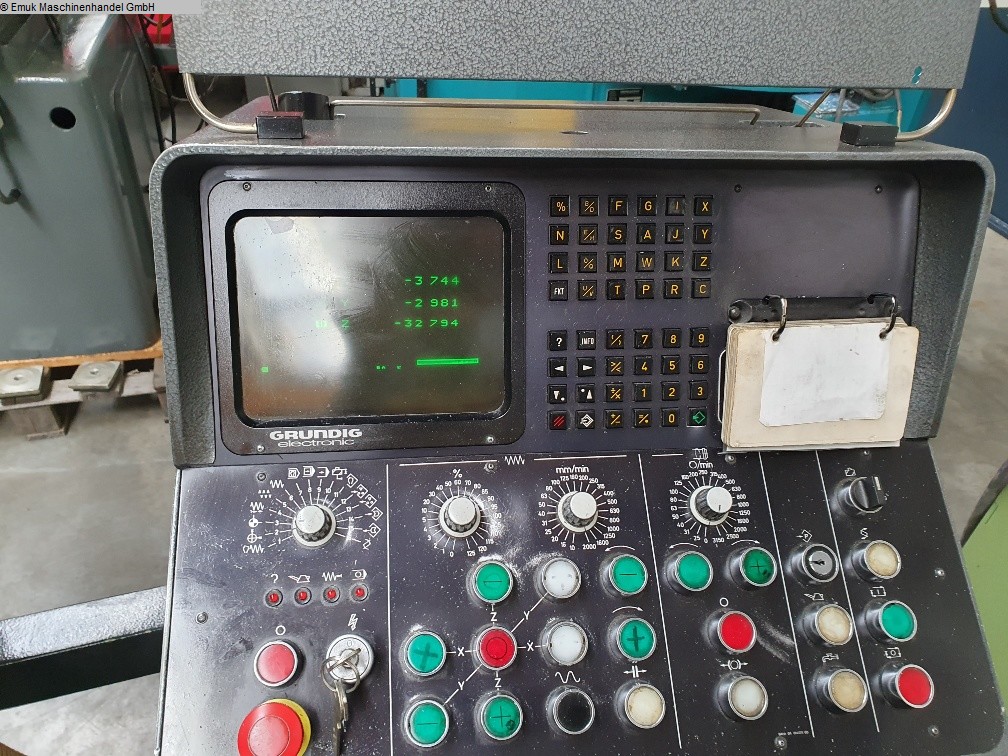

Control Grundig Dialog 11
total power requirement 11,0 kVA
weight of the machine ca. 1,65 t
dimensions of the machine ca. 1,85 x 1,90 x 1,80 m

Technical description

Machine from training workshop!
° Engine brake
° Safety handwheels
° 2 x emergency stop switches
Accesories:
* Rigid angle table
* Coolant facility
