| Machineno | 2070-E1719 |
| Machine type | Grinding Wheel Profiling Device |
| Make | FAESSLER |
| Type | DSA EE 400 |
| Build year | ca. 1999 |
| Control | conventional |
| Storage location | Malsch |
| Origin | Swiss |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. width of grinding wheel | 15 mm |
| max. dia. of grinding wheel | 110 mm |
| ratio | |
| max. module | 0,5 - 10 |
| pressure angle | 15 - 25 ° |
| turning speeds | 2800 U/min |
| total power requirement | 0,4 kW |
| weight of the machine ca. | 0,02 t |
| dimensions of the machine ca. | 0,4 x 0,2 x 0,2 m |
|

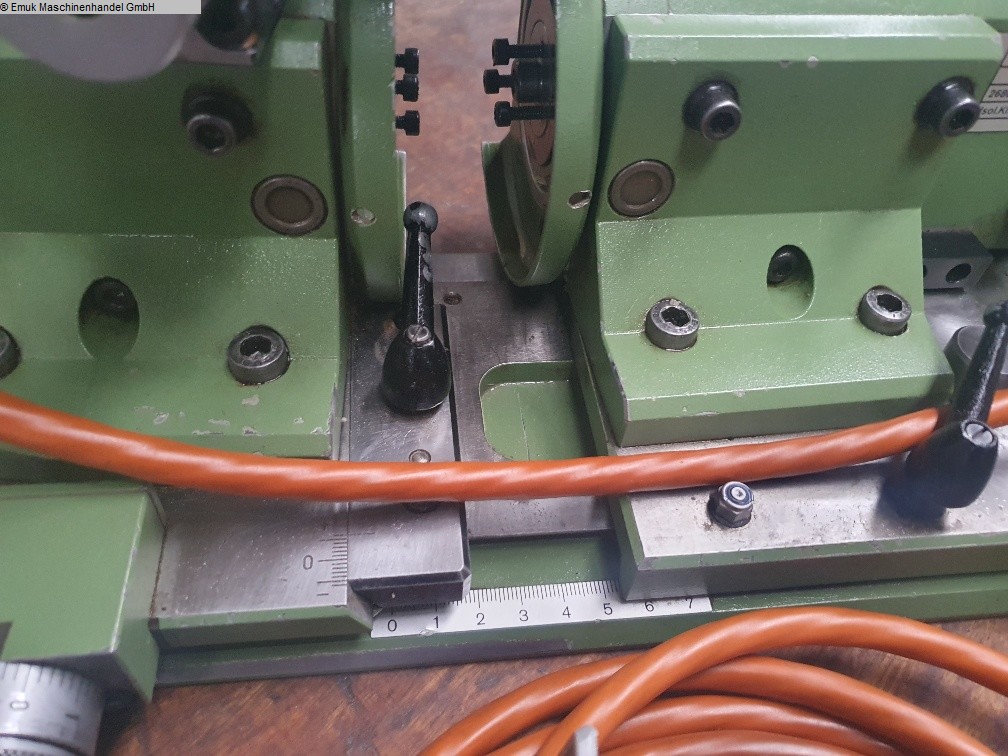

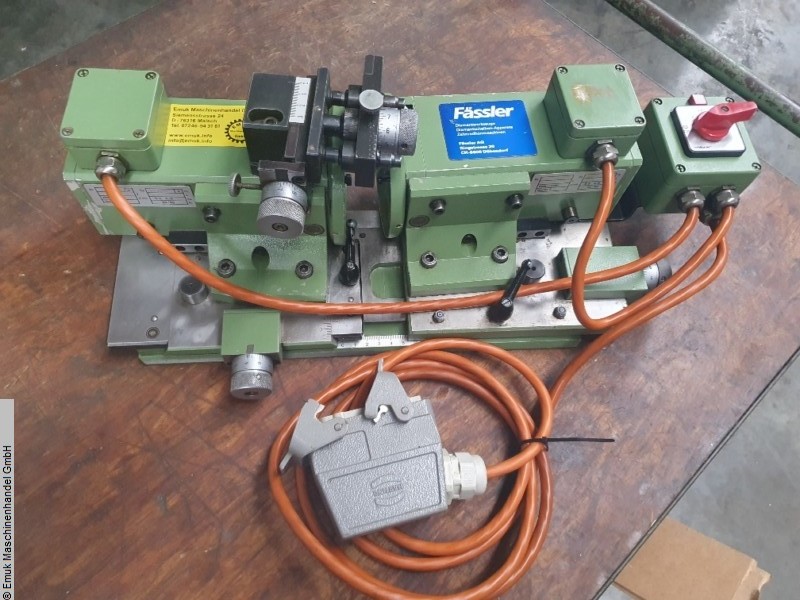

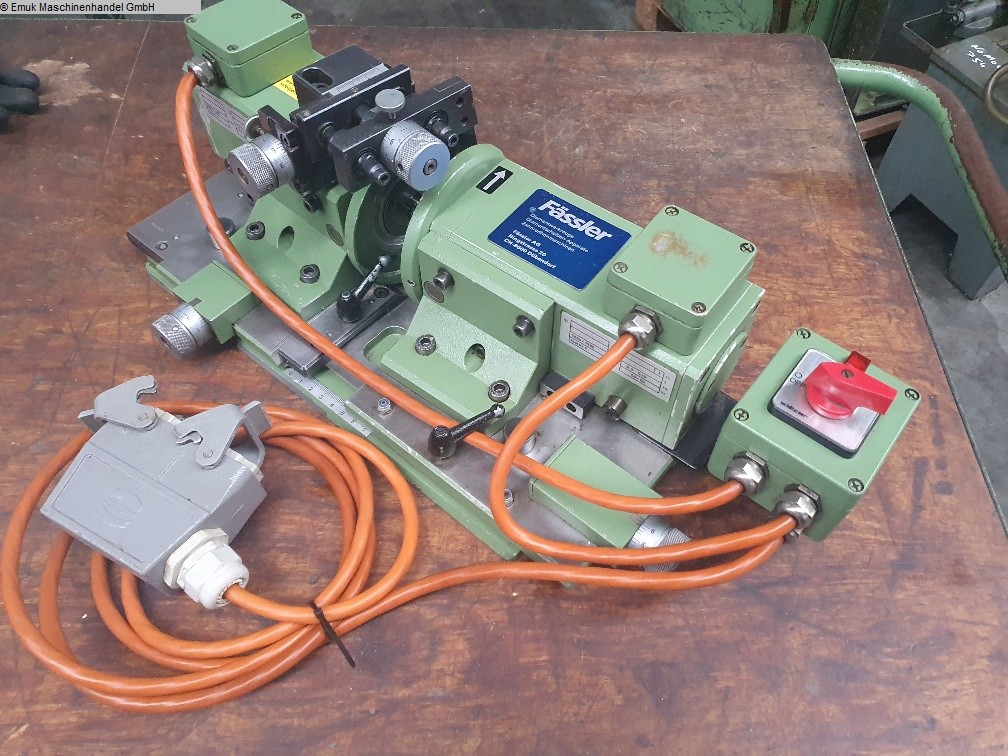

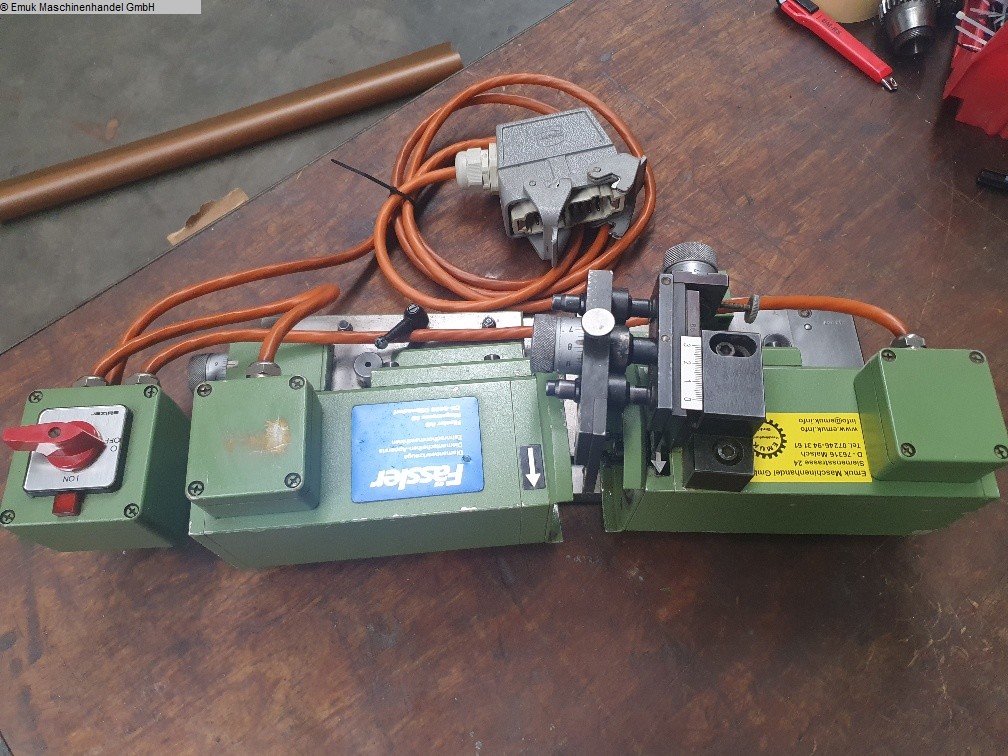

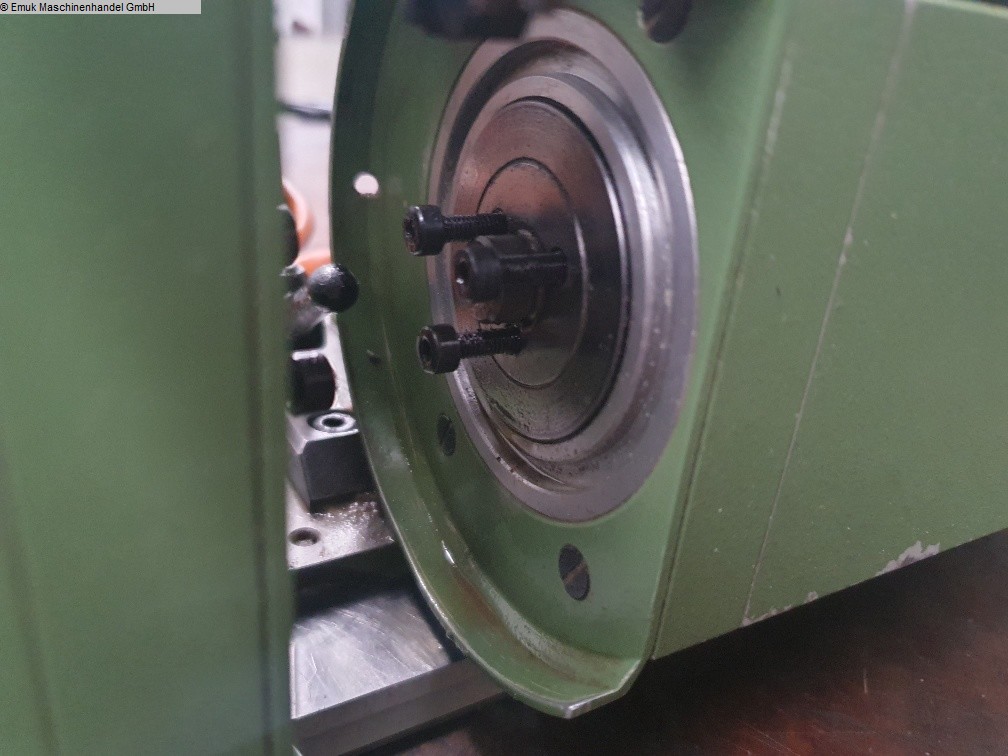

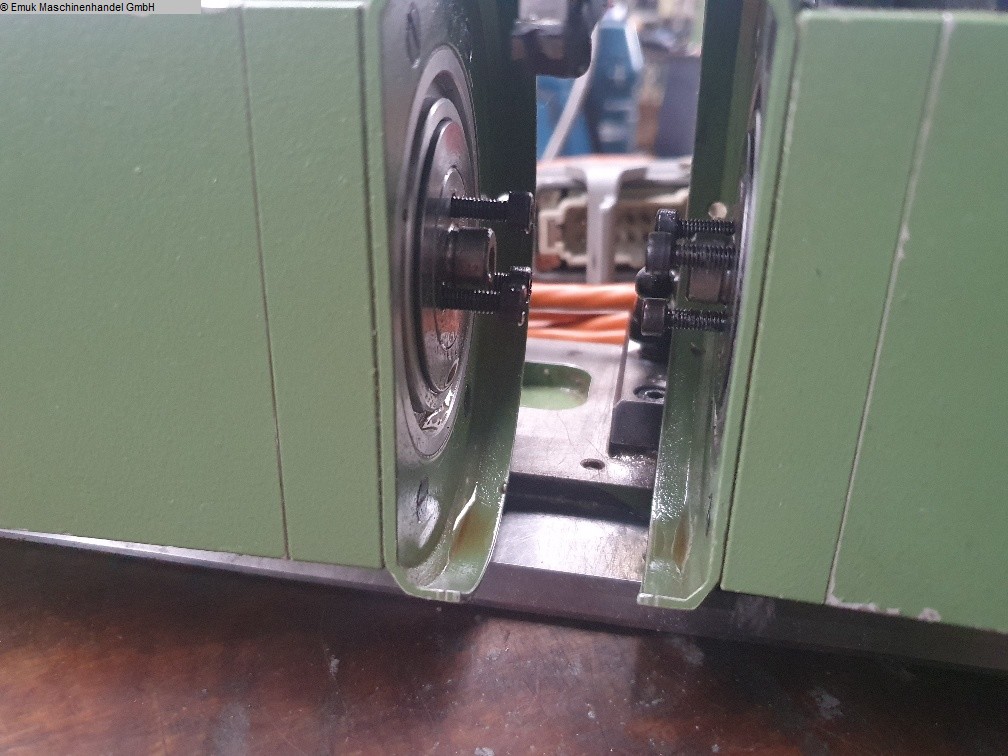

For profiling grinding snails for tooth flank grinding machines. Finished and after-profile on the following models: NZA, AZA, RZ 300 E, RZ 301 S, Rz 362 A, AM, ... Adjustment plate on the right with micrometer screw adjustment axial Radial adjustment plate with micrometer screw adjustment 2 precision motor spindles to absorb the diamond discs. |
