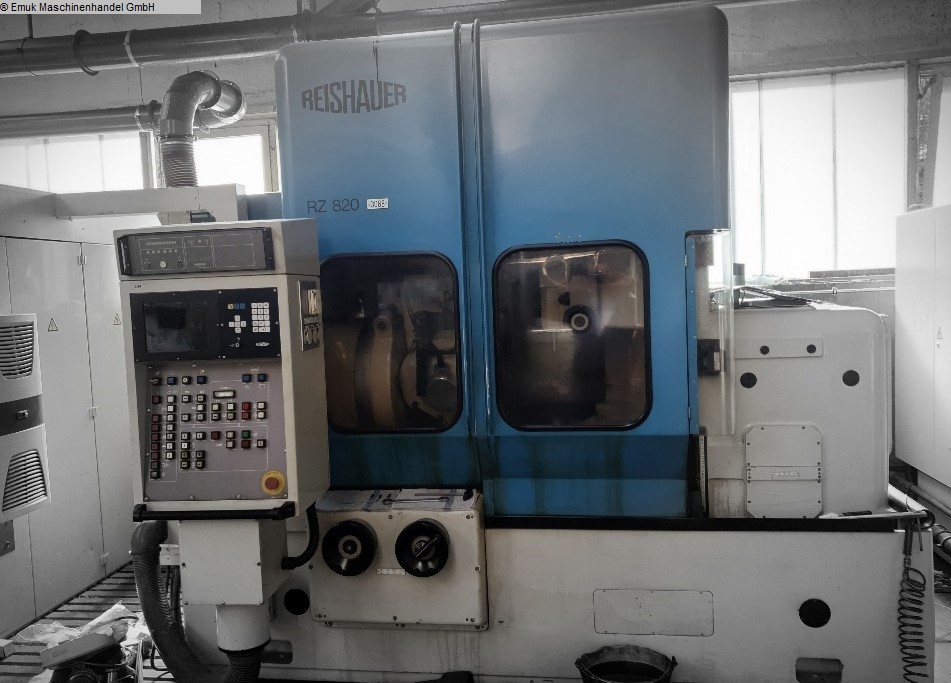

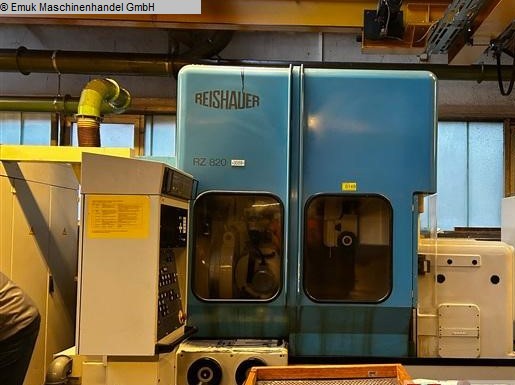

| Machineno | 2070-25206 |
| Machine type | Gear Grinding Machine |
| Make | REISHAUER |
| Type | RZ 820 CNC |
| Build year | 1997 |

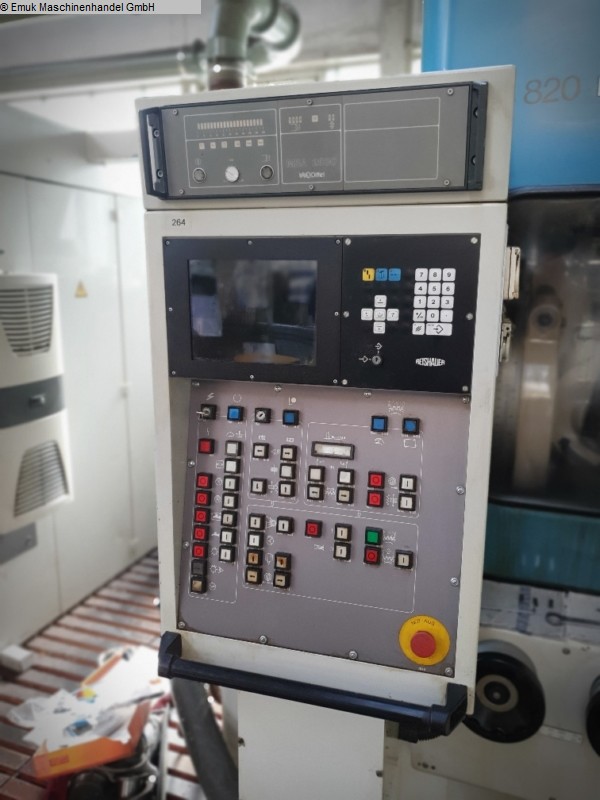

| Control | CNC |
| Storage location | Malsch Lager |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. wheel diameter | 820 mm |
| gear width | 300 mm |
| max. module | 8 |
| min. module | 0,5 |
| clamping length | 865 mm |
| number of teeth | 10 - 600 |
| max.helical angle | +/- 30 ° |
| turning speeds | 1100 - 2150 U/min |
| grinding wheel diameter | 280 - 400 mm |
| grinding wheel width | 84 /104 |
| workpiece weight | max. 300 kg |
| Control | |
| total power requirement | kW |
| weight of the machine ca. | 7,8 t |
| dimensions of the machine ca. | 6,0 x 4,8 x 2,9 m |
|
including REishauer AF Filter, flnges, wheels, change gears |
