| Machineno | 2070-25204 |
| Machine type | Gear Testing Machine |
| Make | KLINGELNBERG |
| Type | P 65 |
| Build year | 2000 |
| Control | CNC |
| Storage location | Malsch |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. wheel diameter | 650 mm |
| gear width | 1200 mm |
| max. module | 15 |
| min. module | 0,5 |
| Control | Klingelnberg |
| table diameter | 460 mm |
| workpiece weight | 500 kg |
| z-axis | 550 mm |
| max.helical angle | 0 - 90 ° |
| centre distance | 1000 mm |
| total power requirement | kW |
| weight of the machine ca. | 3,4 t |
| dimensions of the machine ca. | 2,3 x 1,8 x 2,4 m |
|

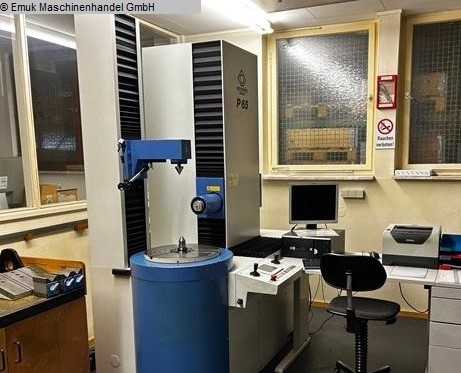

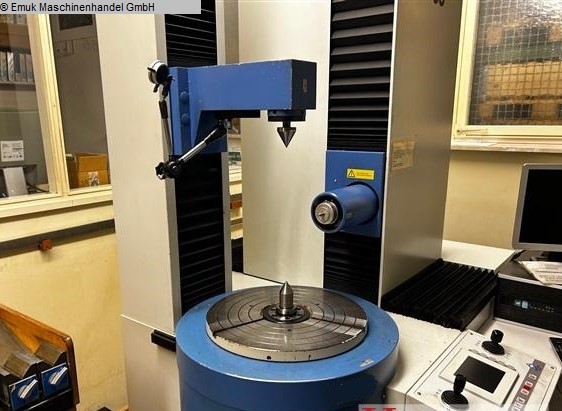

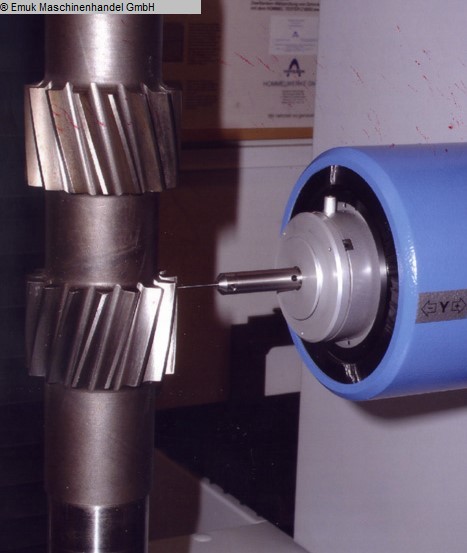

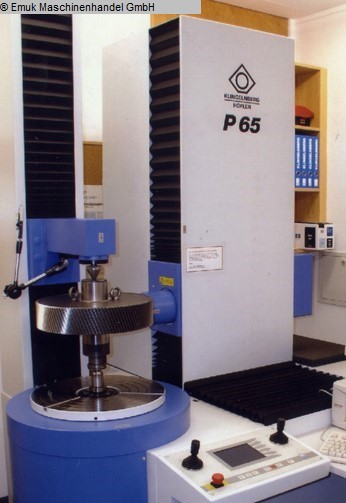

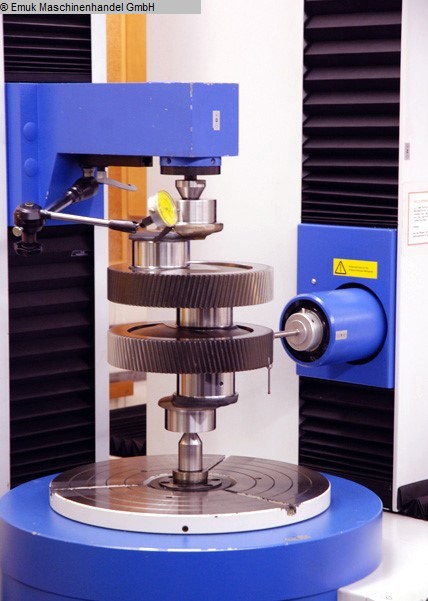

Fully automatic CNC-controlled gear measuring center for spur gears and other gears depending on the software. Equipment for internal gears. |
