| Machineno | 2070-25164 |

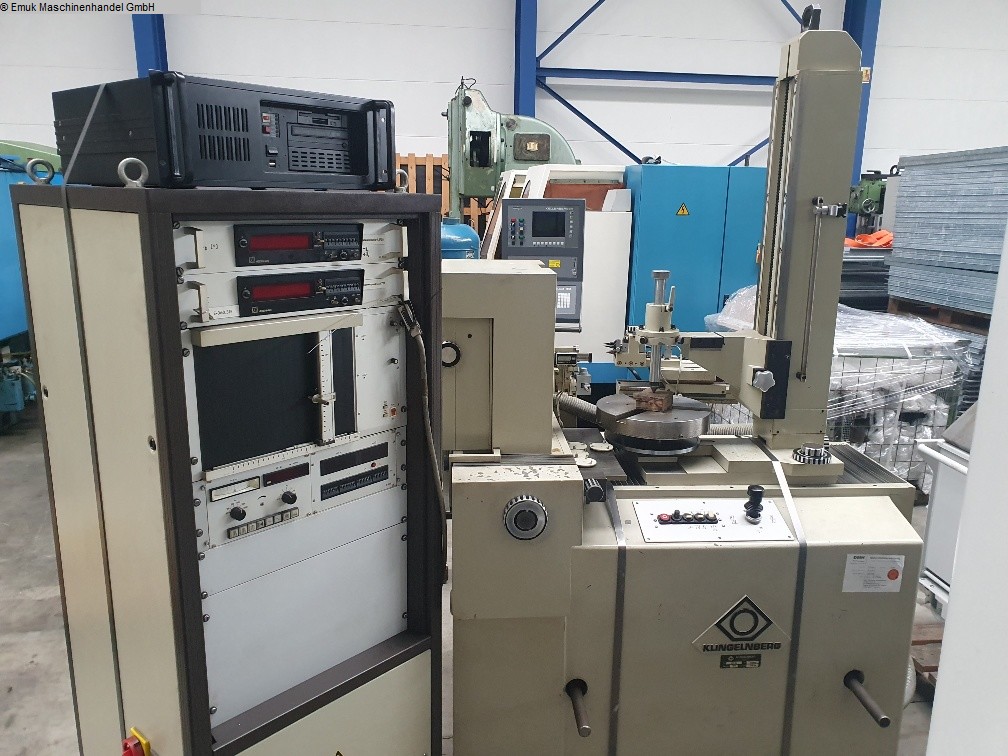

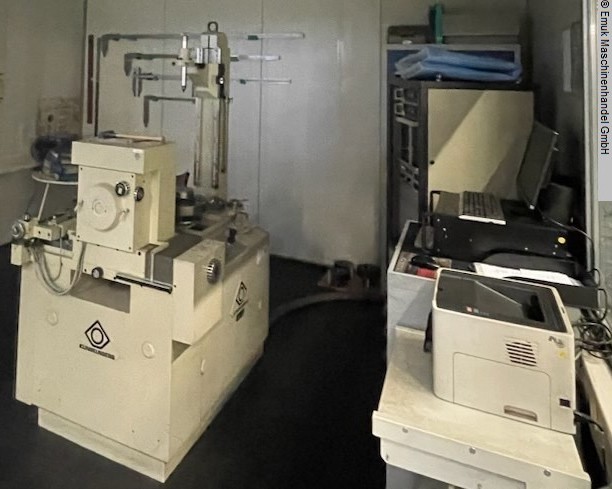

| Machine type | Gear Testing Machine |
| Make | KLINGELNBERG |
| Type | PFS 62 |
| Build year | 1986 |
| Control | conventional |
| Storage location | Malsch |
| Origin | Germany |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. wheel diameter | 600 mm |
| gear width | 410 mm |
| max. module | 20 |
| min. module | 0,1 |
| clamping length max. | 870 mm |
| workpiece weight max. | 800 kg |
| total power requirement | kW |
| weight of the machine ca. | 2,1 t |
| dimensions of the machine ca. | 1,8 x 1,4 x 2,2 m |
|
Checking the dentation Checking the contact line on inclined tooth flanks Checking the tooth flanks on cutting/ scraper wheels Checking the profile and slope of worms Checking of hobs |
