| Machineno | 2070-24088 |

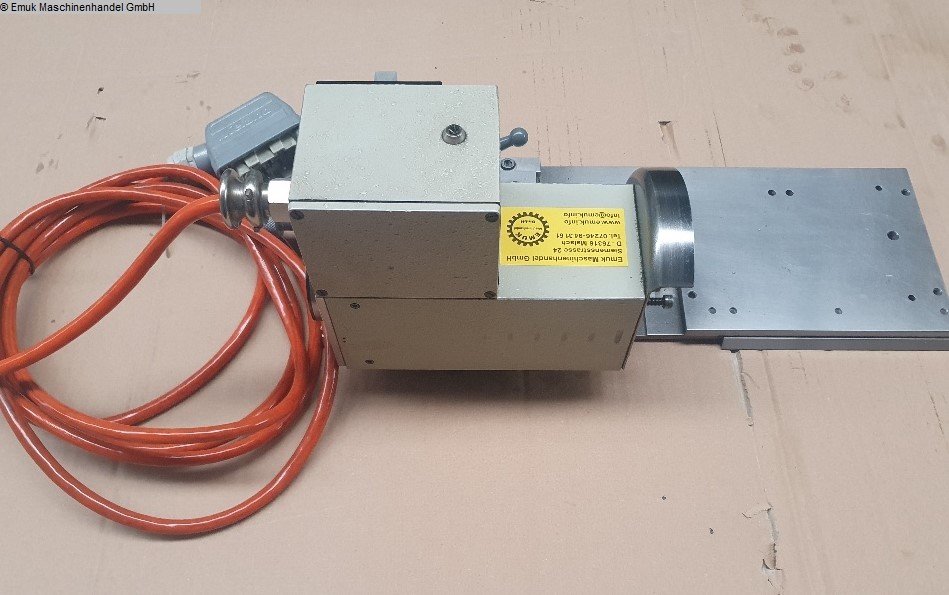

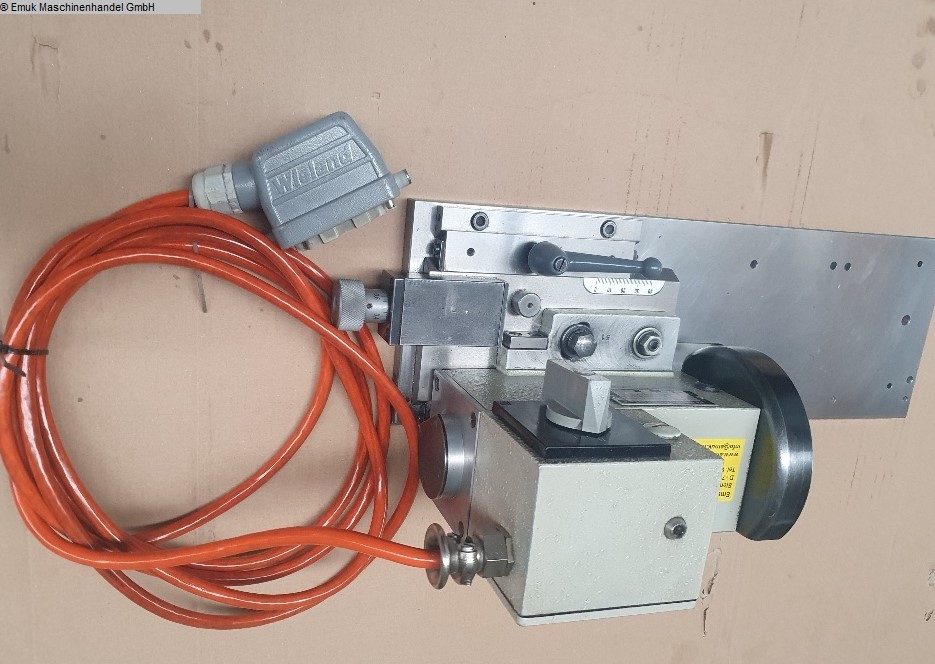

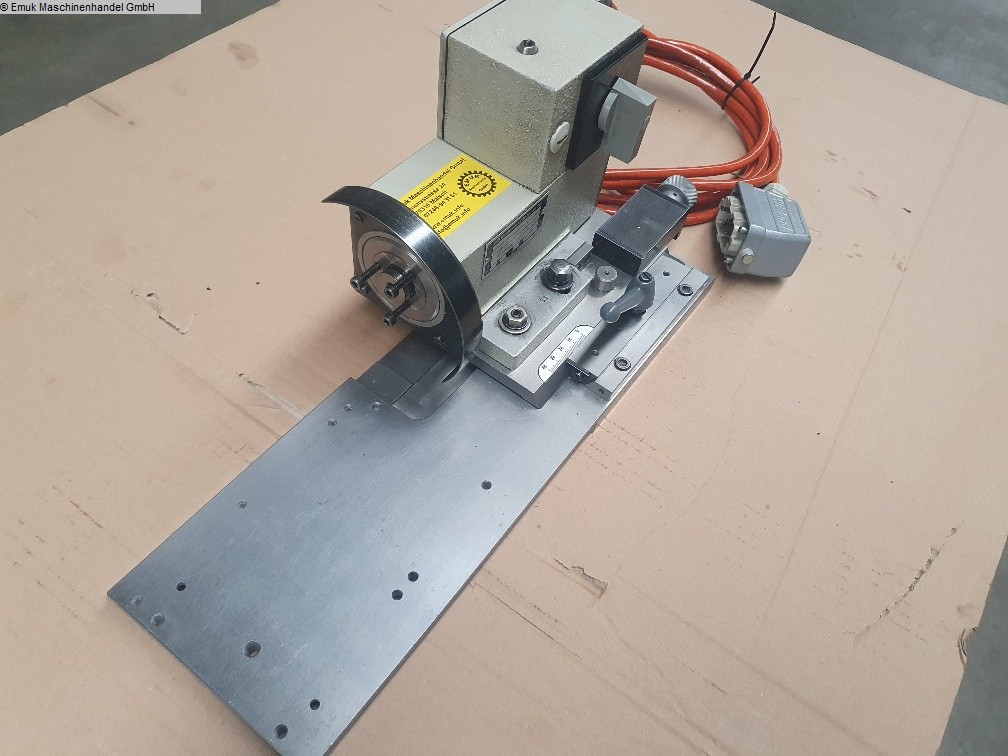

| Machine type | Grinding Wheel Profiling Device |
| Make | Reishauer |
| Type | SPA |
| Build year | |
| Control | conventional |
| Storage location | Malsch |
| Origin | Swiss |
| Delivery time | immediately |
| Freight basis | immediately |
| Price | on request |
| max. width of grinding wheel | 15 mm |
| max. dia. of grinding wheel | 110 mm |
| ratio | |
| max. module | 0,4 - 8 |
| pressure angle | 15 - 25 ° |

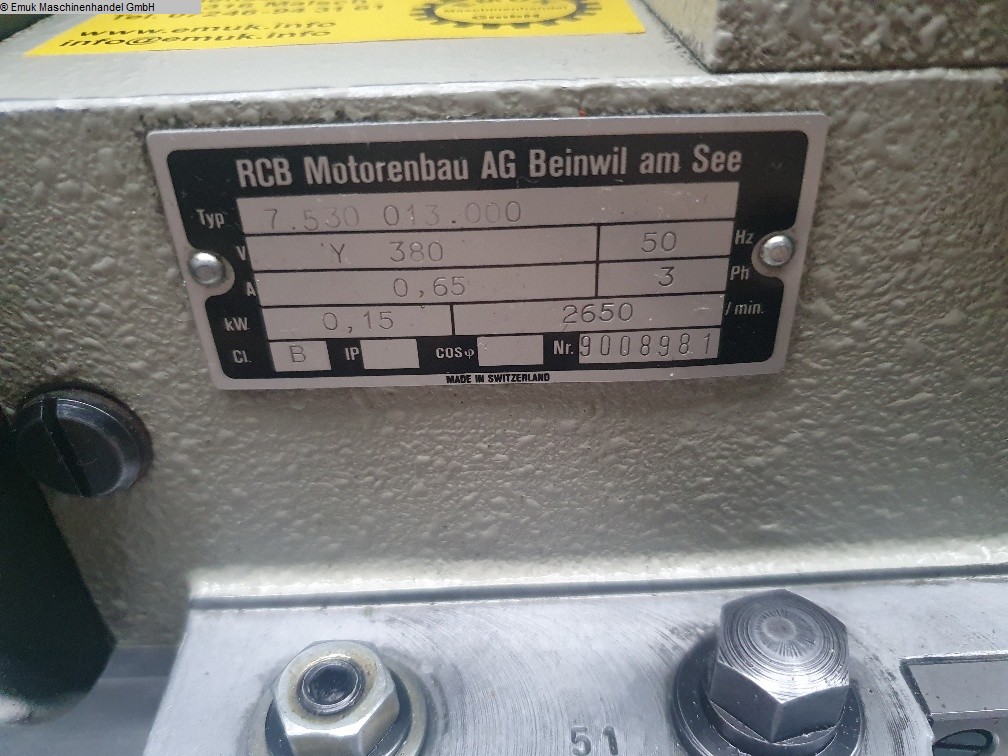

| turning speeds | 2650 U/min |
| total power requirement | 0,4 kW |
| weight of the machine ca. | 0,02 t |
| dimensions of the machine ca. | 0,4 x 0,2 x 0,2 m |
|

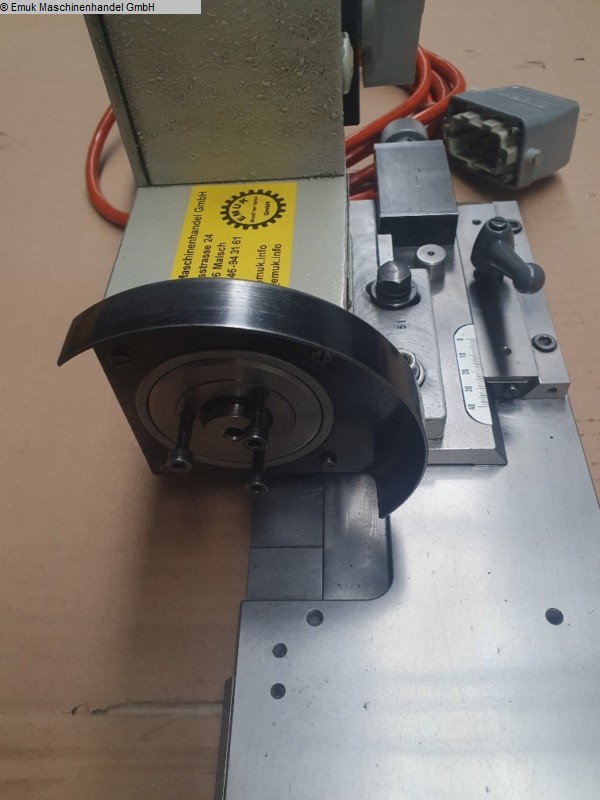

For profiling grinding snails for tooth flank grinding machines. Finished and after-profile on the following models: NZA, AZA, RZ 300 E, RZ 301 S, Rz 362 A, Am, ... Adjustment plate on the right with micrometer screw adjustment axial To bracket a diamond roll. |
